· Energy Saving LED Lights
· Hongli, Samsung, Osram, Philips LED Chips
· Philips, MeanWell, LIFUD, Tridonik, Boke Drivers
· CRI: Ra>80/90/95
· Long Lifespan >100,000 hours
· CE, RoHS, TUV, ENEC, BC Approval
· Vast Range of Stock
· Customized
· Extensive Application
· 5 Years Warranty
· Professional Engineer Support



7. LED Track Lighting



>> Messages



1. LED Office Lighting
2. Input Voltage: AC100-240V/AC220V-240V
3. Power Consumption: 36W, 45W, 54W, 60W, 72W
4. LED Chips Brand: Hongli, Samsung, Osram, Philips
5. Size: W36xH65mm
6. View Angle: 120°
7. CRI: Ra>80.
8. Color Temperature: 3000K, 4100K, 6000K
9. Lifespan: 100,000 hours
10. Material: Aluminum + PC Cover
11. Cover: Frosted PC Cover
12. Warranty: 5 years.
13. Certificates: CE, ROHS approval.
14. IP Grade: IP20, indoor use only.
15. It can be linkable and customized
16. Application: hotel, office, new building, super market, subway station, train station, bus station, garage, townhall, museum, airport, underground parking, commercial shops, etc.






Product Range:  LED Linear Product, Recessed with Trim
MODEL LW-36T-1200 LW-36T-1500 LW-36T-1800 LW-36T-2000 LW-36T-2400   Customized
Power Indirect (up): 0 0 0 0 0 Available
Power Direct (down): 36W 45W 54W 60W 72W
Luminous Efficiency: 100lm/W
Input Voltage: AC220-240V,   AC100-240V,  50/60Hz
Power Factor: >0.95
Working Lifetime(Hour):    50,000hours
IP Rating: IP20,  Indoor Use Only
Body Material: Aluminum and PC cover
Diffuser: PC cover /Prizmatic
Body Color: White, Black, Silver/Grey etc .
Beam Angle: 120 °
Linkable:  Yes, Connectable

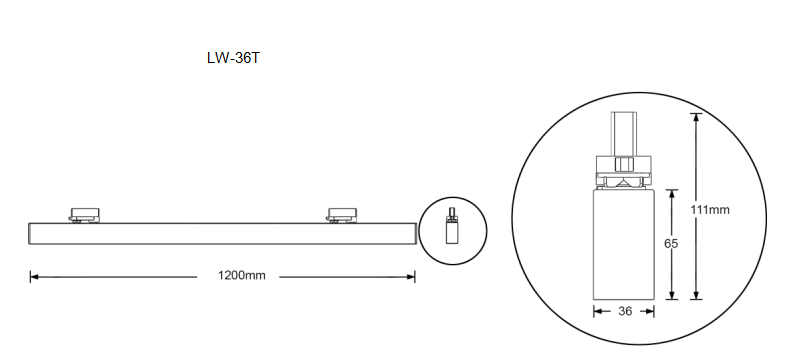

Product Dimentison:  See Picture Drawing
Installation:  Recessed with Trim
LED  light source: LED
LED style: 2835 LED,  0.2W 26-28lm,  gold wires
LED brand: Hongli/Osram/Philips/Samsung
LM-80 test report: Yes, if needed
Color Rendering: Ra>80  or Ra>90
Color Temperature: 2700-6500K
Driver  Driver Brand:  LIFUD/    PHILIPS/   TRIDONIC/    OSRAM/   BOKE
Driver Position:  Inside Fixture
Dimmable: Static color, 0-10V, DALI
Product Style: LED Office Lighting
Working Temperature():   -40 °-85 °
Storage Temperature: -40 °-85 °
Certification: CE ,Rohs
Warranty: five years
Application: office, raiway, shop, advertising, industrial place, gas station, etc .


Parameter  Symbol Min Typ Max Unit  Test Condition
Forward Voltage  Vf 2.8   3.3 V IF=60mA
Viewing Angle  2θ1/2       Deg IF=60mA
Reverse Current  IR     10 μA Vr=5V

Philips LUMILEDS LED 2835 Datasheet:  Please download it from our website.

Hongli  LED 2835 Datasheet:  Please download it from our website.

Bridgelux LED and Osram LED Datasheet:  Please download it from our website.

PCB  Size:   wide 35.5x1196mm

LED Arrangement:  4 rows

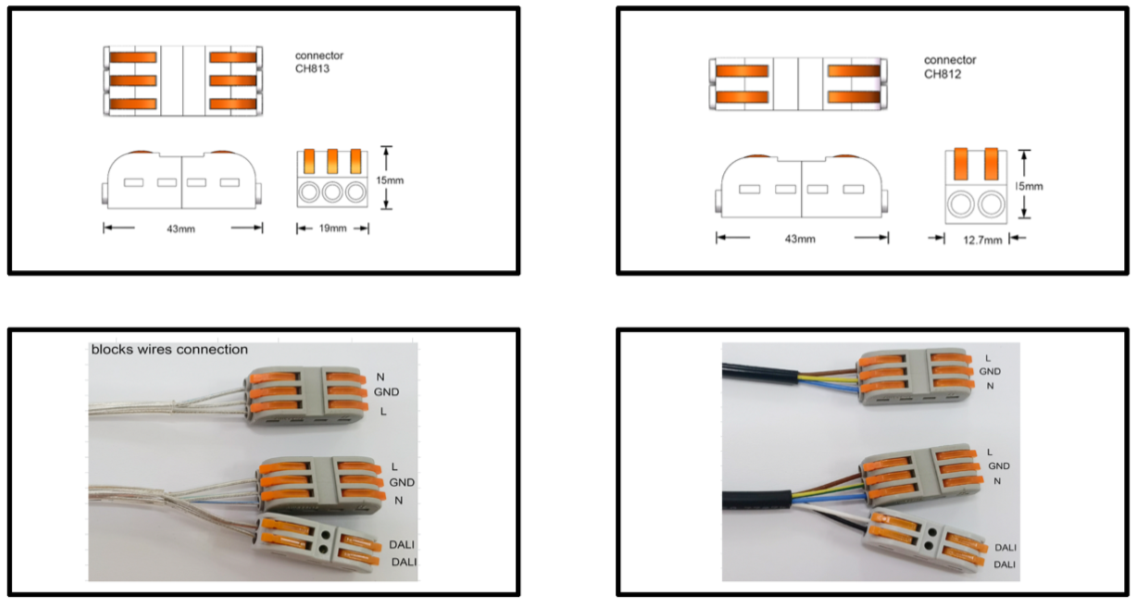

Power Input Connect Blocks, CE certification

  Static Color  0-10V Dimmable  DALI Dimmable
White Fixture  CH813    3-in-3-out  CH813+CH812 CH813+CH812
Black Fixture  CH813    3-in-3-out  CH813+CH812 CH813+CH812
Silver Fixture  CH813    3-in-3-out  CH813+CH812 CH813+CH812




10. Production Information
Product Code  Length: (mm) Power  Input Voltage LED Brand  LED Color  CRI Driver  Body Color  Control Ways  Connection
LW-36T 1200 36W AC100-240V Philips  4000K  Ra>80 Philips Driver  WHITE  NON Dimmable Non Linkable
LW-36T 1500 45W AC100-240V Philips  4000K  Ra>80 Philips Driver  WHITE  NON Dimmable Non Linkable
LW-36T 1800 54W AC100-240V Philips  4000K  Ra>80 Philips Driver  WHITE  NON Dimmable Non Linkable
LW-36T 2000 60W AC100-240V Philips  4000K  Ra>80 Philips Driver  WHITE  NON Dimmable Non Linkable
LW-36T 2400 72W AC100-240V Philips  4000K  Ra>80 Philips Driver  WHITE  NON Dimmable Non Linkable
11. Package Information
PACKAGE Information
Product Length Carton Size(cm) CBM Unit in Cartons  Carton N.W (kg) Carton G.W (kg)
L W H
1200mm 140 21 19 0.05586 8pcs/cartons  12 kg 14 kg
1800mm 200 21 19 0.0798 8pcs/cartons  20 kg 22 kg
2400mm 260 21 19 0.10374 8pcs/cartons  25 kg 27 kg




Company Profile:

SHENZHEN LEDWELL LIGHTING CO.,LIMITED is a professional led lighting manufacturer established in 2007, located in Shenzhen China. More than 50 employees and 6 engineers. We not only make led lighting but also offer solutions. Our service includes design, offering solutions and installation ways. We keep improving, to find a better way to make our products meet customers' full requirements.

LEDWELL specializes in LED lighting such as Led Tube Lights, Led Panel Lights, Led Downlights, Led Hard Strips, Led Ceiling Lamps, etc. All our products are for energe saving and most of them have gotten CE, ROHS approved.
More certificates are on the way.

We expect to establish long terms business relationship with global customers, with both good quality and competitive prices.

Welcome customers to inquiry with your detail requirements. Customized available.



1. Price Terms

Price can be EXW, FOB, CIF, DAP, DDP.

2. Delivery time?

Large stock for regular colors and sizes, can be shipped within 2 days. Customized colors and sizes depends on quantity. 50K units is available for most of our models in normal colors and sizes.

3. Payment Terms?

The payment can be T/T, L/C, Western Union.

4. Shipment Options?

Small quantities can be shipped by air, or DHL, UPS, FEDEX express. Large quantities we suggest shipping by sea to save cost. You can choose your own forwarder agent.

5. Sample available?

Yes. We can send samples first, samples and shipping cost  need be charged if the value is high. It can be negotiated.

6. Will there be any contract for this business or trade?

Yes, there is a normal contract/Proforma Invoice before the order is placed.
