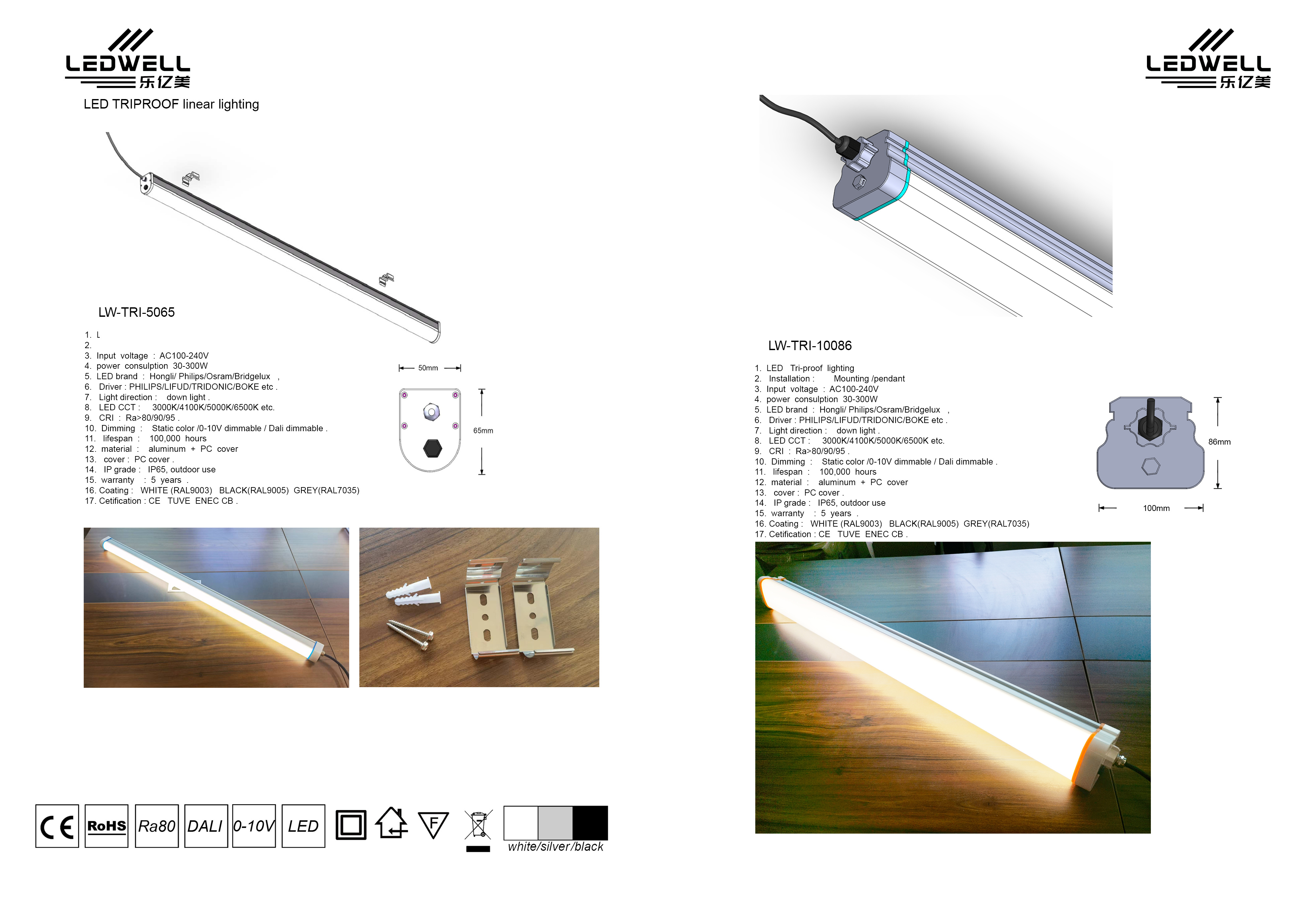

LW-TRI5065
· Energy Saving LED Lights
· Hongli, Samsung, Osram, Philips LED Chips
· Philips, MeanWell, LIFUD, Tridonik, Boke Drivers
· CRI: Ra>80/90/95
· Long Lifespan >100,000 hours
· CE, RoHS, TUV, ENEC, BC Approval
· Vast Range of Stock
· Customized
· Extensive Application
· 5 Years Warranty
· Professional Engineer Support
Classification:
LED linear lighting
14. LED Triproof Lighting
Keywords：
LW-TRI5065
>> Messages
Detail
Specifications
1. LED Office Lighting
2. Input Voltage: AC100-240V/AC220V-240V
3. Power Consumption: 30-300W
4. LED Chips Brand: Hongli, Samsung, Osram, Philips
5. Size: W50XH65mm
6. View Angle: 120°
7. CRI: Ra>80/90/95.
8. Color Temperature: 3000K, 4100K, 6000K
9. Lifespan: 100,000 hours
10. Material: Aluminum + PC Cover
11. Cover: PC cover.
12. Warranty: 5 years.
13. Certificates: CE, ROHS approval.
14. IP Grade: IP65.
15. It can be linkable and customized.
16. Application: hotel, office, new building, super market, subway station, train station, bus station, garage, townhall, museum, airport, underground parking, commercial shops, etc.
| Product Range : | LED Linear Product, Recessed with Trim | |||||||||

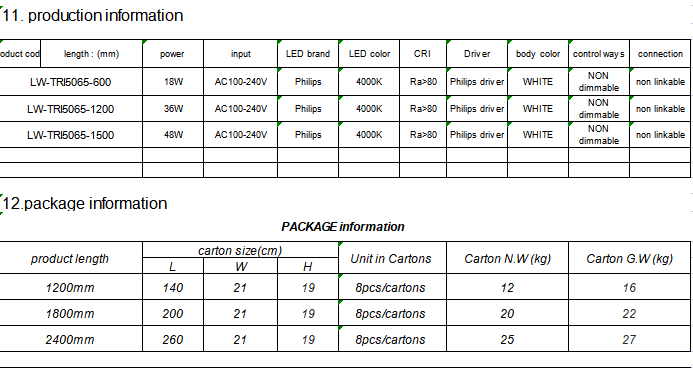

| MODEL | LW-TRI5065-600 | LW-TRI5065-1200 | LW-TRI5065-1500 | Customized | ||||||
| Power Indirect (up): | 0 | 0 | 0 | Available | ||||||
| Power Direct (down): | 18W | 36W | 48W | |||||||
| Luminous Efficiency: | 100lm/W | |||||||||
| Input Voltage: | AC220-240V, AC100-240V, 50/60Hz | |||||||||
| Power factor: | >0.95 | |||||||||
| Working Lifetime(Hour): | 50,000hours | |||||||||
| IP Rating: | Waterproof IP65 | |||||||||
| Body Material: | Aluminum and PC cover | |||||||||
| Diffuser: | PC Cover /Prizmatic | |||||||||
| Body Color: | White, Black, Silver/Grey, etc. | |||||||||

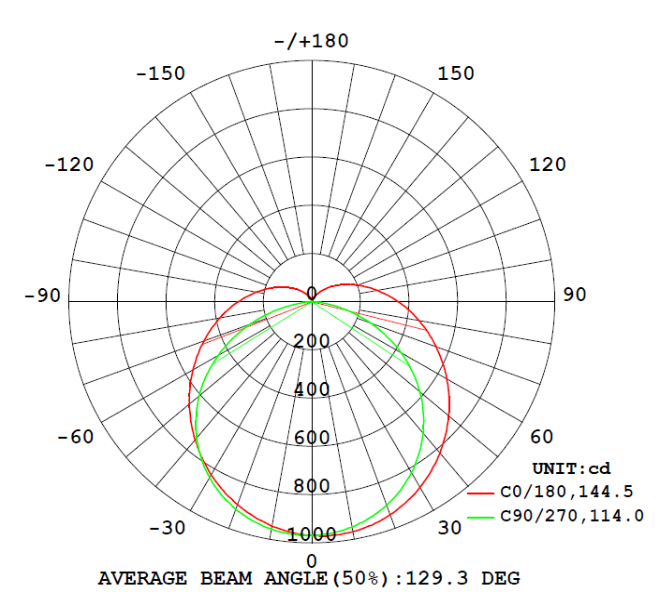

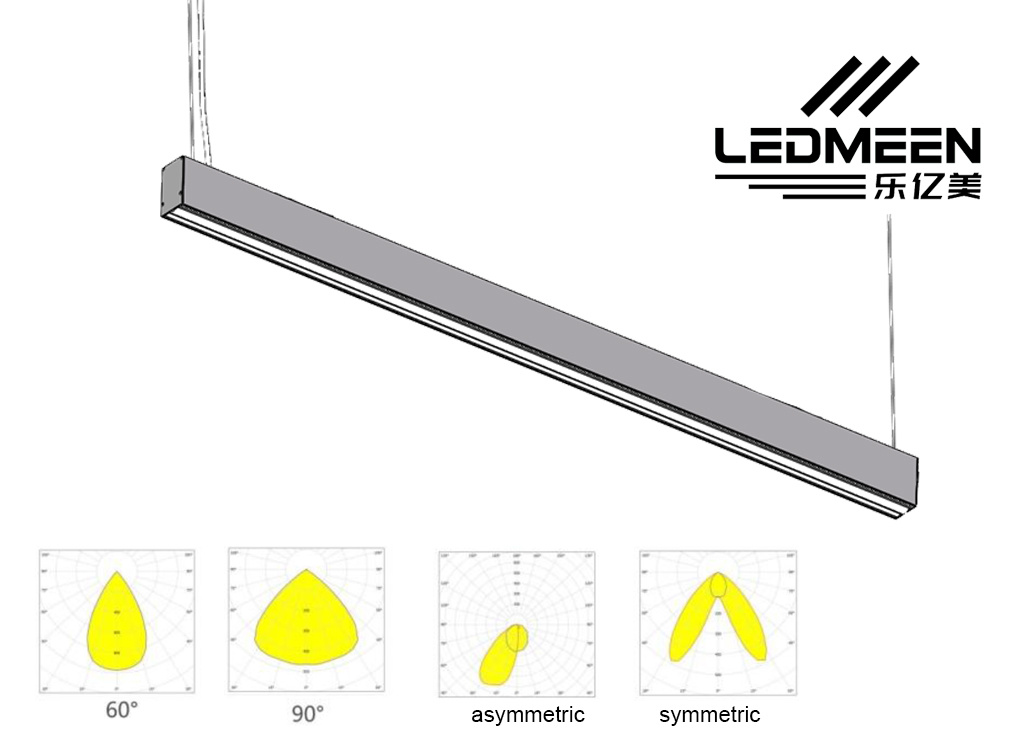

| Beam Angle: | 120 ° | |||||||||
| Linkable: | Yes, Connectable | |||||||||

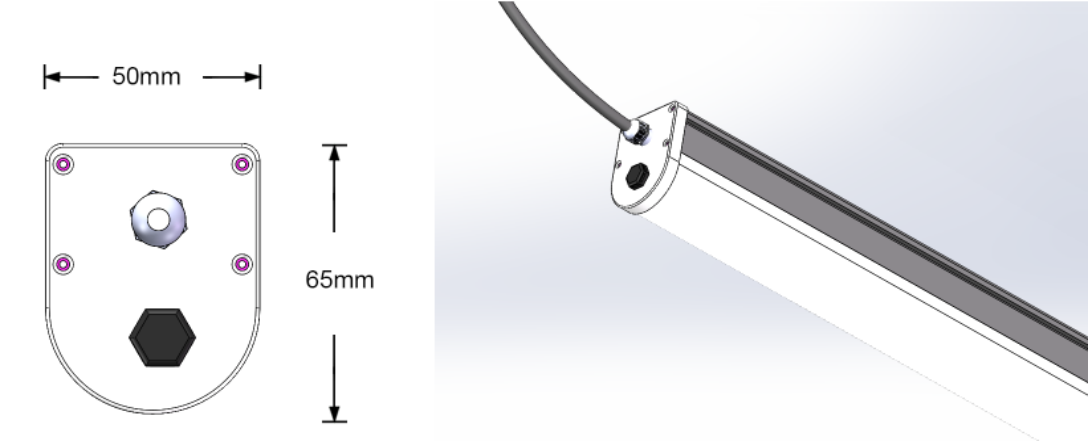

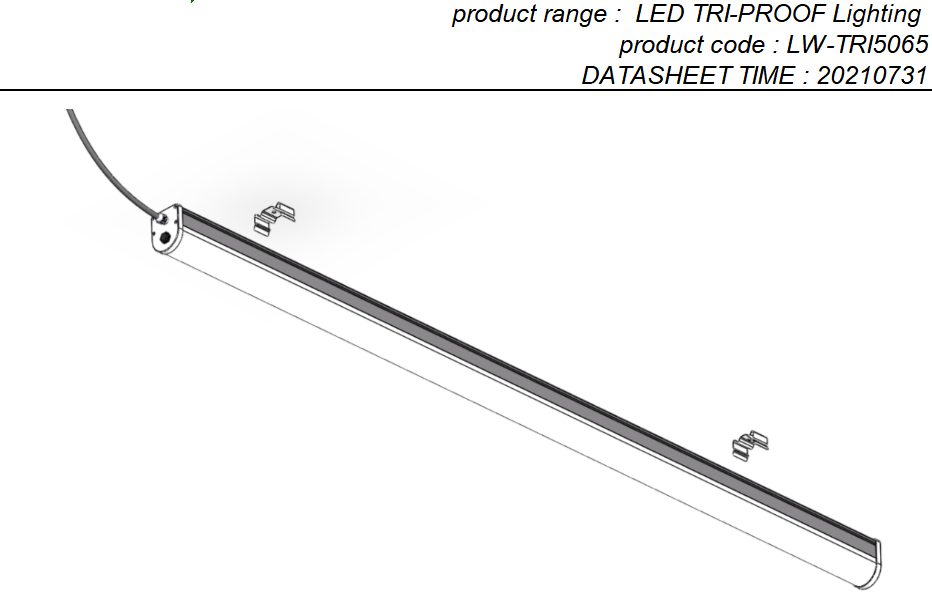

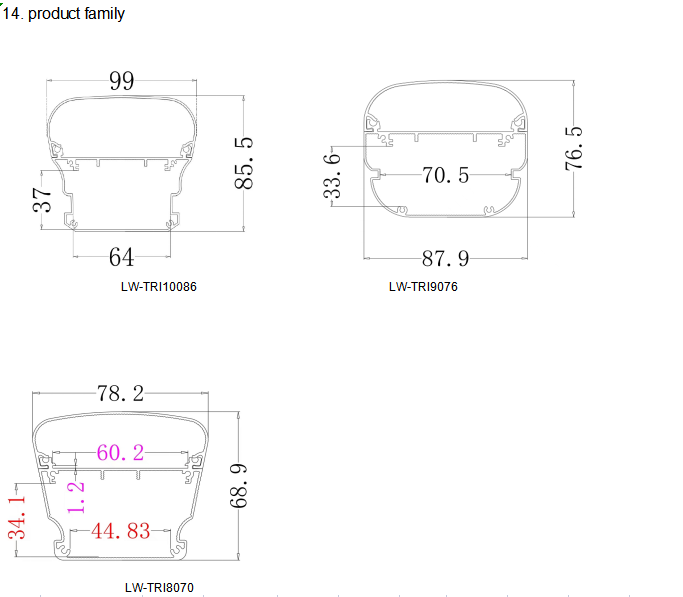

| Product Dimentison: | See Picture Drawing | |||||||||

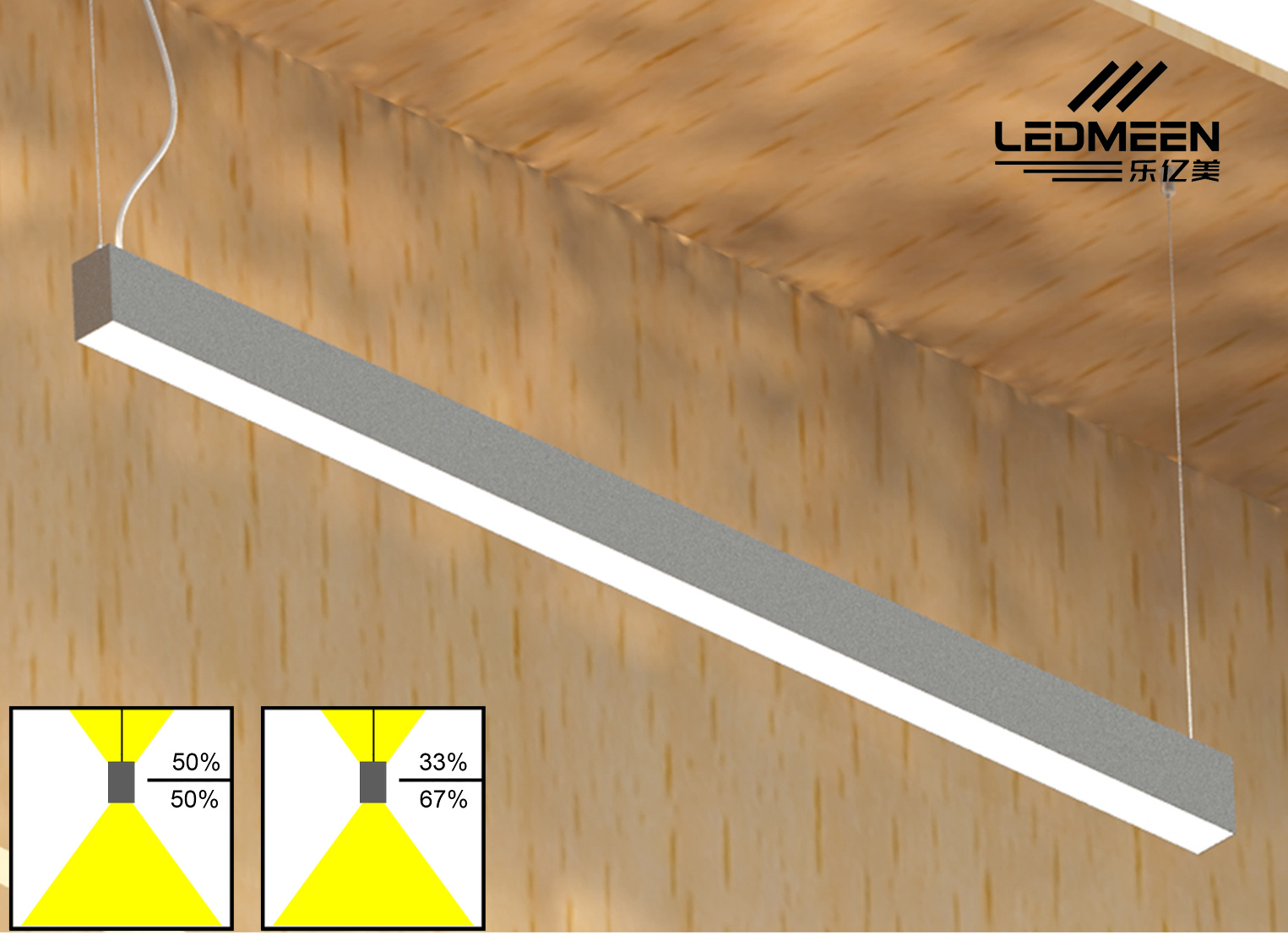

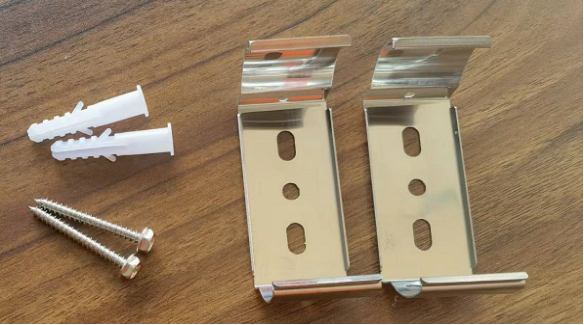

| Installation: | MOUNTING or PENDANT | |||||||||
| LED | Light Source: | LED | ||||||||

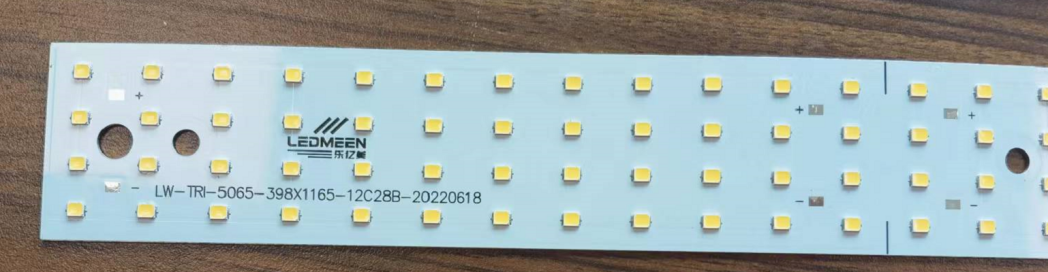

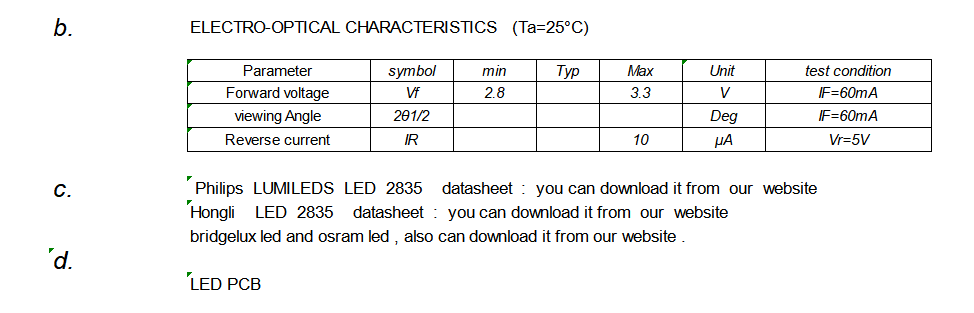

| LED Style: | 2835 LED, 0.2W 26-28lm, Gold wires | |||||||||

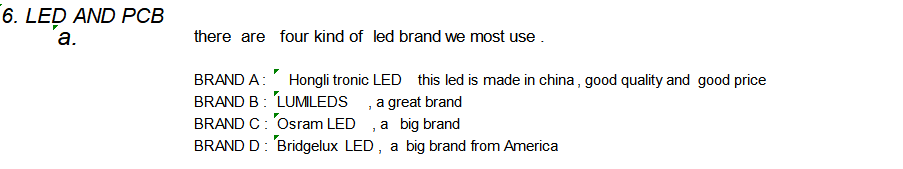

| LED brand: | Hongli/Osram/Philips/Samsung | |||||||||
| LM-80 test report: | Yes, if needed | |||||||||
| Color Rendering: | Ra>80, or Ra>90 | |||||||||
| Color Temperature: | 2700-6500K | |||||||||
| Driver | Driver Brand: | LIFUD/ PHILIPS/ TRIDONIC/ OSRAM/ BOKE | ||||||||
| Driver Position: | Inside Fixture | |||||||||

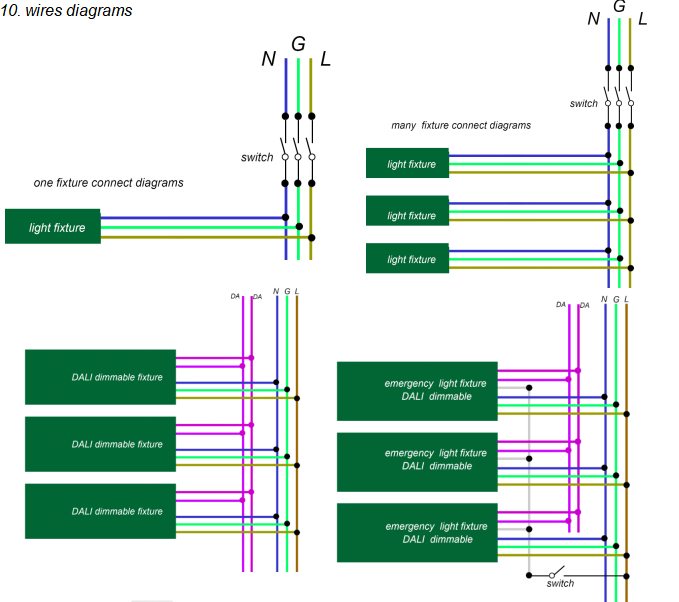

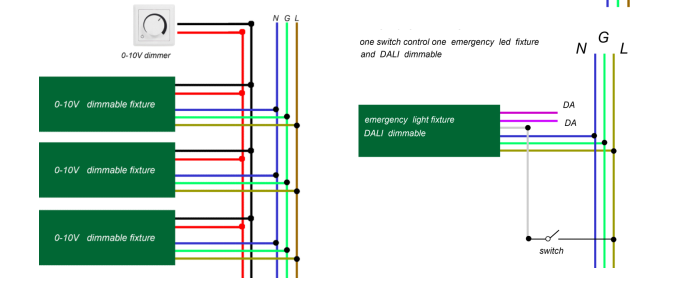

| Dimmable: | Static Color, 0-10V, DALI, EMERGENCY ETC. | |||||||||
| Product Style: | LED Office Lighting | |||||||||
| Working Temperature(℃): | -40 °～-85 ° | |||||||||
| Storage Temperature: | -40 °～-85 ° | |||||||||
| Certification: | CE ,Rohs | |||||||||
| Warranty: | 5 Years | |||||||||
| Application : | office, raiway, shop, advertising, industrial place, gas station, etc. | |||||||||
| Length | 1000mm | 1200mm | 1500mm | 1800mm | 2000mm | 2400mm | Length can be Customized | ||
| Power | 30W | 36W | 48W | 54W | 60W | 72W | |||
| Lumen | 100lm/W | 100lm/W | 100lm/W | 100lm/W | 100lm/W | 100lm/W | |||
| Lumen | 3000lm | 3600lm | 4800lm | 5400lm | 6000lm | 7200lm | |||
| Lifud Driver | 30W/750mA | 36W/950mA | 48W/1200mA | 54W/1350mA | 60W/1500mA | 72W/1900mA | |||
| Philips Driver | 41W/550mA | 41W/700mA | 54W/900mA | 54W/1000mA | 72W/1200mA | 72W/1300mA | |||
| Tridonic Driver | LC27/500 | LC/38/700 | LC57/1050 | LC57/1050 | LC75/1400 | ||||
| Meanwell Driver | LDC-35 | LDC-35 | LDC-55 | LDC-55 | LDC-80 | LDC-80 | |||
Company Profile:
SHENZHEN LEDWELL LIGHTING CO.,LIMITED is a professional led lighting manufacturer established in 2007, located in Shenzhen China. More than 50 employees and 6 engineers. We not only make led lighting but also offer solutions. Our service includes design, offering solutions and installation ways. We keep improving, to find a better way to make our products meet customers' full requirements.
LEDWELL specializes in LED lighting such as Led Tube Lights, Led Panel Lights, Led Downlights, Led Hard Strips, Led Ceiling Lamps, etc. All our products are for energe saving and most of them have gotten CE, ROHS approved.
More certificates are on the way.
We expect to establish long terms business relationship with global customers, with both good quality and competitive prices.
Welcome customers to inquiry with your detail requirements. Customized available.
FAQ:
1. Price Terms
Price can be EXW, FOB, CIF, DAP, DDP.
2. Delivery time?
Large stock for regular colors and sizes, can be shipped within 2 days. Customized colors and sizes depends on quantity. 50K units is available for most of our models in normal colors and sizes.
3. Payment Terms?
The payment can be T/T, L/C, Western Union.
4. Shipment Options?
Small quantities can be shipped by air, or DHL, UPS, FEDEX express. Large quantities we suggest shipping by sea to save cost. You can choose your own forwarder agent.
5. Sample available?
Yes. We can send samples first, samples and shipping cost need be charged if the value is high. It can be negotiated.
6. Will there be any contract for this business or trade?
Yes, there is a normal contract/Proforma Invoice before the order is placed.
