LW-50P up and down

Advantages

· Energy Saving LED Lights
· Hongli, Samsung, Osram, Philips LED Chips
· Philips, MeanWell, LIFUD, Tridonik, Boke Drivers
· CRI: Ra>80/90/95
· Long Lifespan >100,000 hours
· CE, RoHS, TUV, ENEC, BC Approval
· Vast Range of Stock
· Customized
· Extensive Application
· 5 Years Warranty
· Professional Engineer Support

Classification:

PRODUCTS

6. LED Linear Up and Down

Keywords:

LW-50P up and down


>> Messages

Detail

Specifications

1. LED Office Lighting
2. Input Voltage: AC100-240V/AC220V-240V
3. Power Consumption: 36W, 48W, 60W
4. LED Chips Brand: Hongli, Samsung, Osram, Philips
5. Size: W50xH80mm
6. View Angle: 120°
7. CRI: Ra>80.
8. Color Temperature: 3000K, 4100K, 6000K
9. Lifespan: 100,000 hours
10. Material: Aluminum + PC Cover
11. Cover: Frosted PC Cover
12. Warranty: 5 years.
13. Certificates: CE, ROHS approval.
14. IP Grade: IP20, indoor use only.
15. It can be linkable and customized
16. Application: hotel, office, new building, super market, subway station, train station, bus station, garage, townhall, museum, airport, underground parking, commercial shops, etc.











Product Range:  LED Linear Product, Recessed with Trim
MODEL LW-50P-1200 LW-50P-1500 LW-50P-1800 LW-50P-2400 Customized
Power  Indirect (up): 0 0 0 0 Available
Power Direct (down): 36W 48W 60W 72W
Luminous Efficiency: 100lm/W
Input Voltage: AC220-240V,   AC100-240V,  50/60Hz
Power Factor: >0.95
Working Lifetime(Hour):  50,000hours
IP Rating: IP20, Indoor Use Only
Body Material: aluminum and PC Cover
Diffuser: PC Cover /Prizmatic
Body Color: White, Black, Silver/Grey, etc.
Beam Angle: 120 °
Linkable: Yes, Connectable

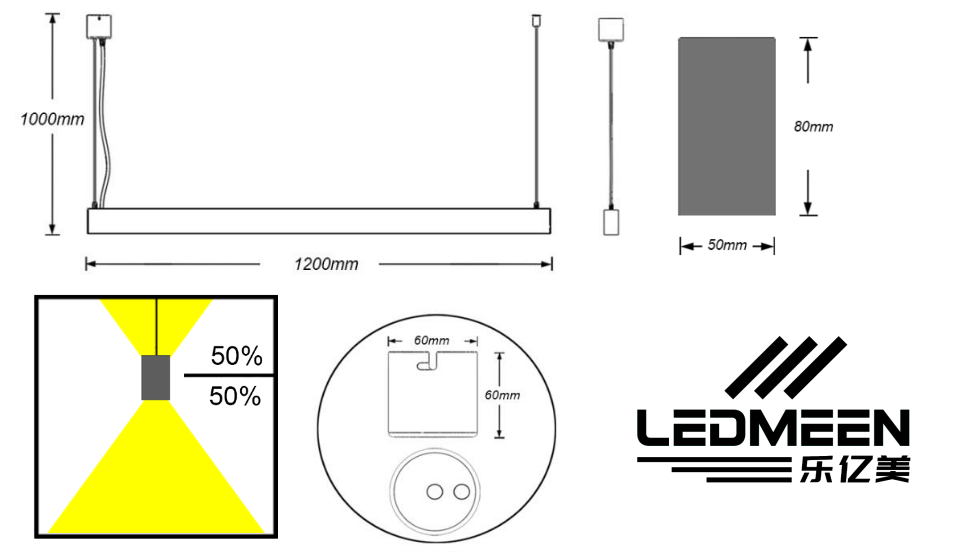

Product Dimenison: See Picture Drawing
Installation: Recessed with Trim
LED  Light Source: LED
LED Style: 2835 LED, 0.2W 26-28lm, Gold wires
LED Brand: Hongli/Osram/Philips/Samsung
LM-80 Test Report:  Yes, if needed
Color Rendering:  Ra>80,  or Ra>90
Color Temperature: 2700-6500K
Driver  Driver Brand: LIFUD/    PHILIPS/   TRIDONIC/   OSRAM/   BOKE
Driver Position: Inside Fixture
Dimmable: Static color, 0-10V, DALI
Product Style:  LED office lighting
Working Temperature():    -40 °-85 °
Storage Temperature:    -40 °-85 °
Certification:    CE ,Rohs
Warranty:  5 years
Application:  Application: hotel, office, new building, super market, subway station, train station, bus station, garage, townhall, museum, airport, underground parking, commercial shops, etc.



Parameter  Symbol Min Typ Max Unit  Test Condition
Forward Voltage  Vf 2.8   3.3 V IF=60mA
Viewing Angle  2θ1/2       Deg IF=60mA
Reverse Current  IR     10 μA Vr=5V

Philips LUMILEDS LED 2835 Datasheet:  Please download it from our website.

Hongli  LED 2835 Datasheet:  Please download it from our website.

Bridgelux LED and Osram LED Datasheet:  Please download it from our website.

PCB  Size:   wide 35.5x1196mm

LED Arrangement:  4 rows







A


10. production information

Product Code  Length (mm) Power  Input LED Brand  LED Color  CRI Driver  Body Color  Control Ways  Connection
LW-50P 1200 36W AC100-240V Philips  4000K  Ra>80 Philips Driver  WHITE  Non Dimmable Non Linkable
LW-50P 1500 45W AC100-240V Philips  4000K  Ra>80 Philips Driver  WHITE  Non Dimmable Non Linkable
LW-50P 1800 54W AC100-240V Philips  4000K  Ra>80 Philips Driver  WHITE  Non Dimmable Non Linkable
LW-50P 2000 60W AC100-240V Philips  4000K  Ra>80 Philips Driver  WHITE  Non Dimmable  Non Linkable
LW-50P 2400 72W AC100-240V Philips  4000K  Ra>80 Philips Driver  WHITE  Non Dimmable Non Linkable

11. Package Information

Product Length Carton Size(cm)     CBM Unit in Cartons  Carton N.W (kg) Carton G.W (kg)
L W H
1200mm 140 21 19 0.05586 8pcs/cartons  12 kg 14 kg
1800mm 200 21 19 0.0798 8pcs/cartons  20 kg 22 kg
2400mm 260 21 19 0.10374 8pcs/cartons  25 kg 27 kg
