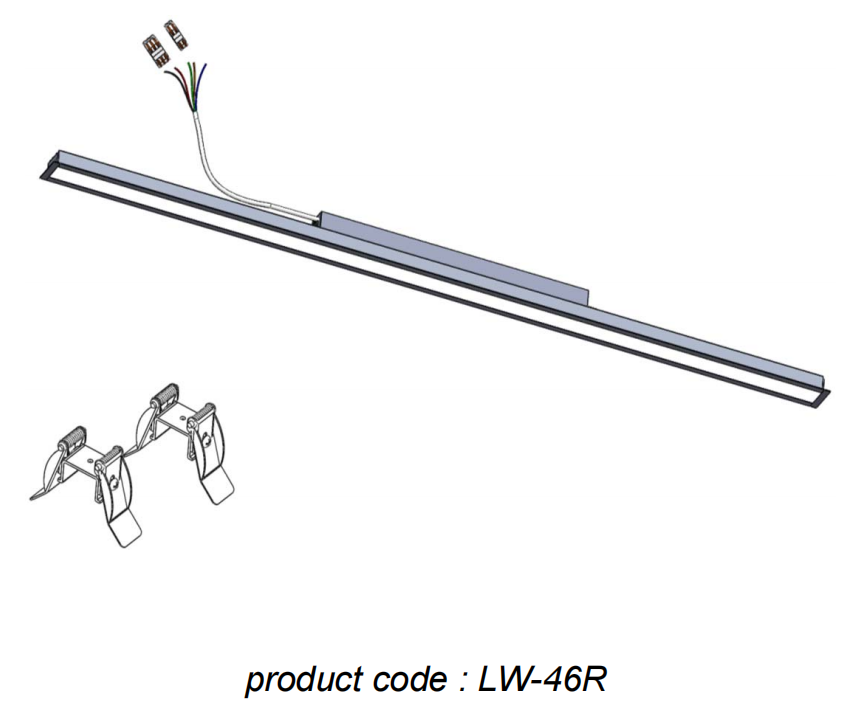

LW-46R

Advantages

· Energy Saving LED Lights
· Hongli, Samsung, Osram, Philips LED Chips
· Philips, MeanWell, LIFUD, Tridonik, Boke Drivers
· CRI: Ra>80/90/95
· Long Lifespan >100,000 hours
· CE, RoHS, TUV, ENEC, BC Approval
· Vast Range of Stock
· Customized
· Extensive Application
· 5 Years Warranty
· Professional Engineer Support

Classification:

1. LED Linear Recessed with Trim

LED linear lighting

Keywords：

LW-46R

>> Messages

Ies document download

LW-46R-Datasheet

LW-46R-IES-PDF

LW-46R_IES

Video

Detail

Specifications

1. LED Office Lighting
2. Input Voltage: AC100-240V/AC220V-240V
3. Power Consumption: 24W, 36W, 48W, 60W, 72W
4. LED Chips Brand: Hongli, Samsung, Osram, Philips
5. Size: W46XH29mm
6. View Angle: 120°
7. CRI: Ra>80.
8. Color Temperature: 3000K, 4100K, 6000K
9. Lifespan: 100,000 hours
10. Material: Aluminum + PC Cover
11. Cover: Frosted cover
12. Warranty: 5 years.
13. Certificates: CE, ROHS approval.
14. IP Grade: IP20, indoor use only.
15. It can be linkable and customized.
16. Application: hotel, office, new building, super market, subway station, train station, bus station, garage, townhall, museum, airport, underground parking, commercial shops, etc.

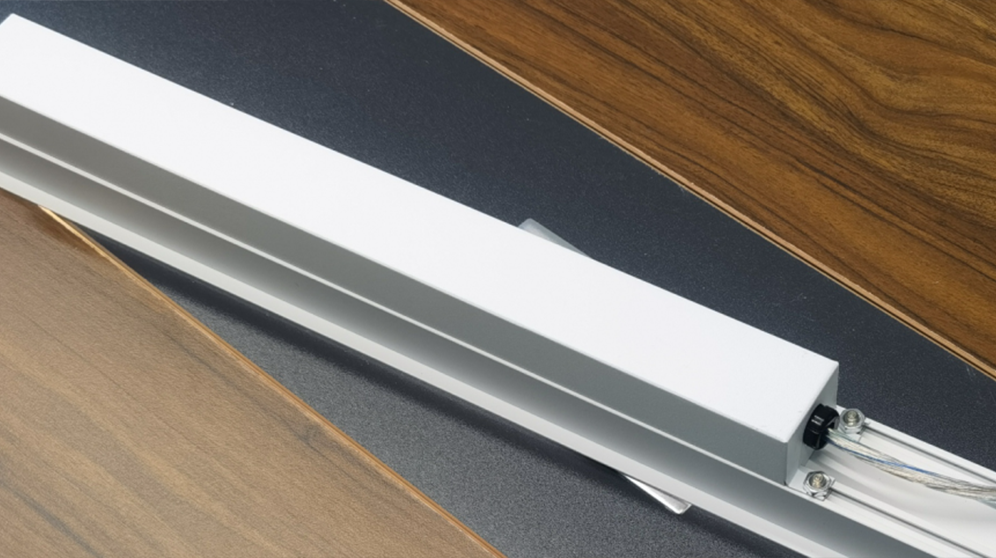

2. product details

3. SPECIFICATION:

Product Range:		LED Linear Product, Recessed with Trim
MODEL		LW-46R-1200	LW-46R-1500	LW-46R-1800	LW-46R-2400	customized
Power Indirect (up):		0	0	0	0	available
Power Direct (down):		36W	48W	60W	72W
Luminous Efficiency:		100lm/W
Input Voltage:		AC220-240V, AC100-240V, 50/60Hz
Power Factor:		>0.95
Working Lifetime(Hour):		50,000hours
IP Rating:		IP20, Indoor Use Only
Body Material:		Aluminum and PC Cover
Diffuser:		PC Cover /Prizmatic
Body color:		White, Black, Silver/Grey, etc.
Beam Angle:		120 °
Linkable:		Yes, Linkable

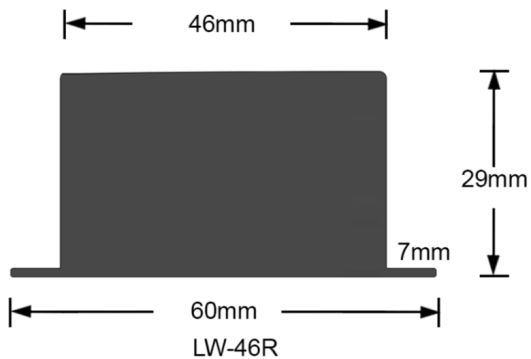

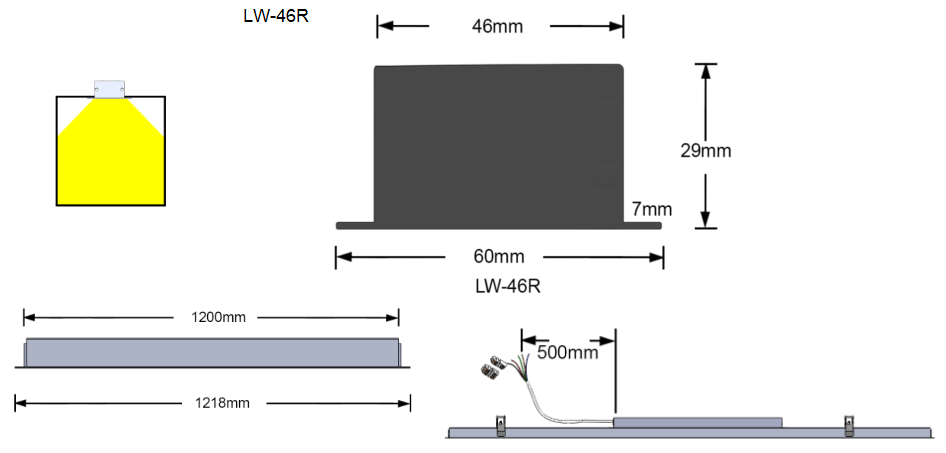

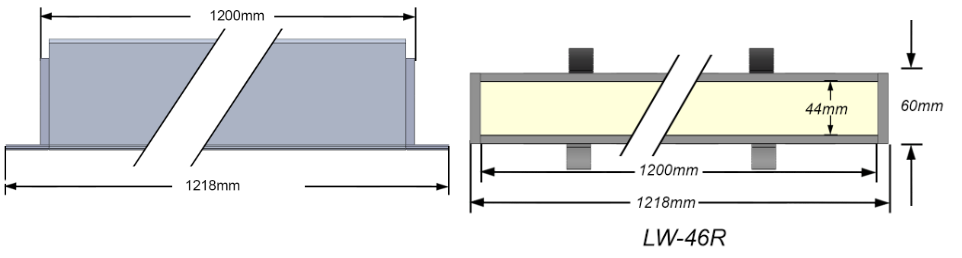

Product Dimension:		See Picture Drawing
Installation:		Recessed with Trim
LED	Light Source:	LED
	LED Style:	2835 LED, 0.2W 26-28lm, Gold wires
	LED Brand :	Hongli/Osram/Philips/Samsung
	LM-80 Test Report:	Yes, if needed
	Color Rendering:	Ra>80, or Ra>90
	Color Temperature:	2700-6500K
Driver	Driver Brand:	LIFUD/ PHILIPS/ TRIDONIC/ OSRAM/ BOKE
	Driver Position:	Inside Fixture
	Dimmable:	Static Color, 0-10V, DALI
Product Style:		LED Office Lighting
Working Temperature(℃):		-40 °～-85 °
Storage Temperature:		-40 °～-85 °
Certification:		CE, Rohs
Warranty:		5 Years
Application:		office, raiway, shop, advertising, industrial place, gas station, etc.

4. Driver

a. We mostly use LIFUD drivers, Philips drivers, Tridonic drivers and Meanwell drivers.

Length	1000mm	1200mm	1500mm	1800mm	2000mm	2400mm	Length Customized
Power	30W	36W	48W	54W	60W	72W
Lumen	100lm/W	100lm/W	100lm/W	100lm/W	100lm/W	100lm/W
Lumen	3000lm	3600lm	4800lm	5400lm	6000lm	7200lm
Lifud Driver	30W/750mA	36W/950mA	48W/1200mA	54W/1350mA	60W/1500mA	72W/1900mA
Philips Driver	41W/550mA	41W/700mA	54W/900mA	54W/1000mA	72W/1200mA	72W/1300mA
Tridonic Driver	LC27/500	LC/38/700	LC57/1050		LC57/1050	LC75/1400
Meanwell Driver	LDC-35	LDC-35	LDC-55	LDC-55	LDC-80	LDC-80

b. ELECTRO-OPTICAL CHARACTERISTICS (Ta=25°C)

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	Vf	2.8		3.3	V	IF=60mA
View Angle	2θ1/2				Deg	IF=60mA
Reverse Current	IR			10	μA	Vr=5V

c. Philips LUMILEDS LED 2835 Datasheet: Please download it from our website.
Hongli LED 2835 Datasheet: Please download it from our website.
Bridgelux LED and Osram LED: Please download it from our website.

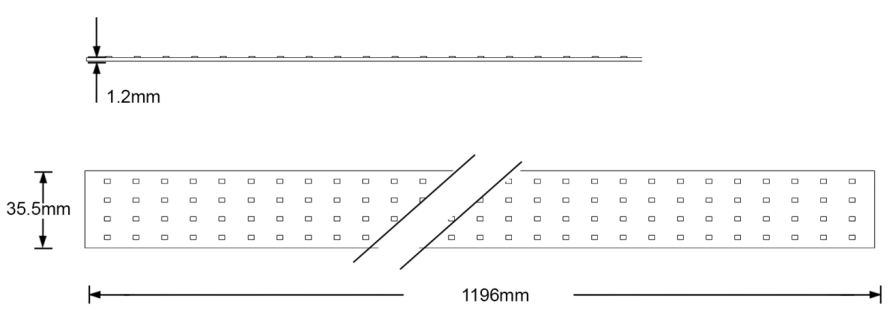

d. PCB Size: W35.5x1196mm
LED Arrangement: 4 rows

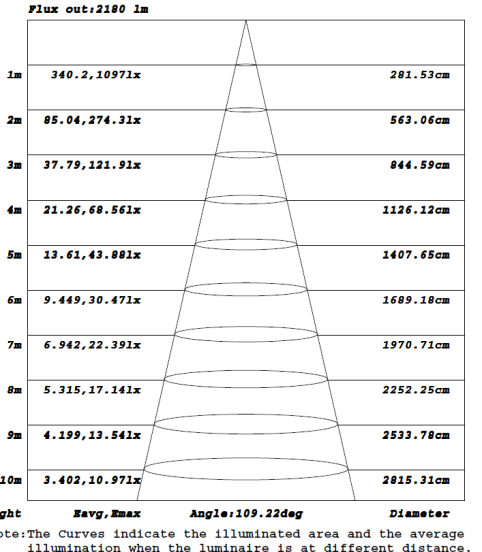

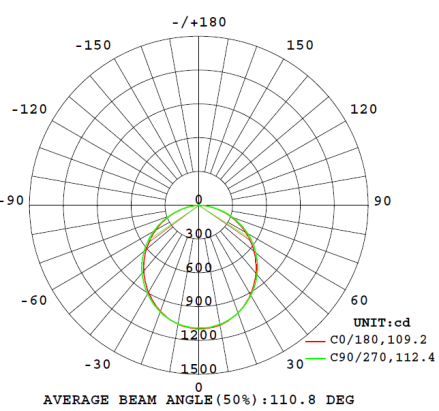

7. IES Test Report

8. CONNECT BLOCKS

Power input connect blocks, CE certification.

	static color	0-10V dimmable	DALI dimmable
white fixture	CH813 3-in-3-out	CH813+CH812	CH813+CH812
black fixture	CH813 3-in-3-out	CH813+CH812	CH813+CH812
silver fixture	CH813 3-in-3-out	CH813+CH812	CH813+CH812

CH812 for dimmable wires connection 2-in-2-out.

b. Connector certification: Please download it from our website.

c. Connect ways:

9. CONNECT CABLES

1. Input wires, VDE certification.

	Static Color	0-10V Dimmable	DALI Dimmable
White Fixture	Transparent 3 Conductor	Transparent 5 Conductor	Transparent 5 Conductor
Black Fixture	Black 3 Conductor	Black 5 Conductor	Black 5 Conductor
Silver Fixture	Transparent 3 Conductor	Transparent 5 Conductor	Transparent 5 Conductor

b. Wires certification: Please download it from our website.

c. Wires diagrams:

10. Wires Diagrams:

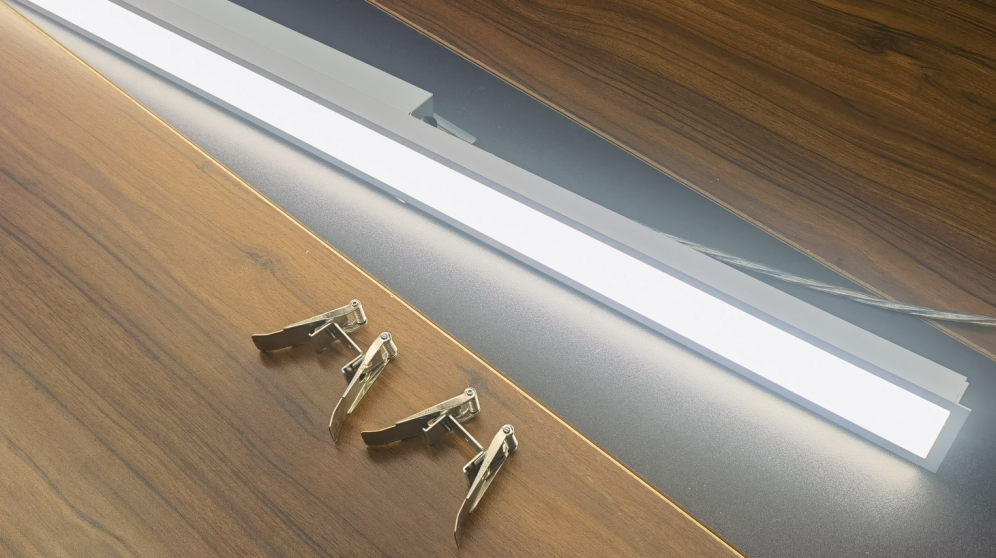

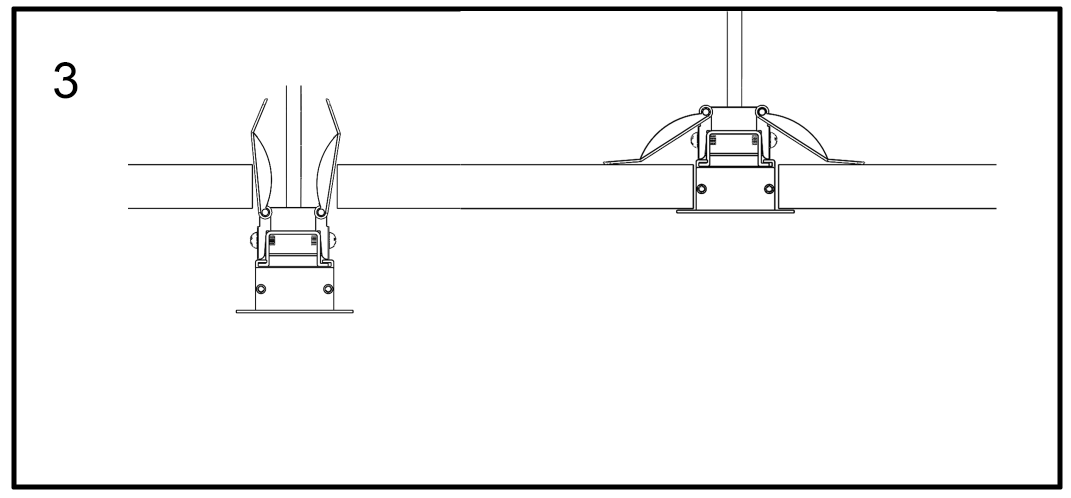

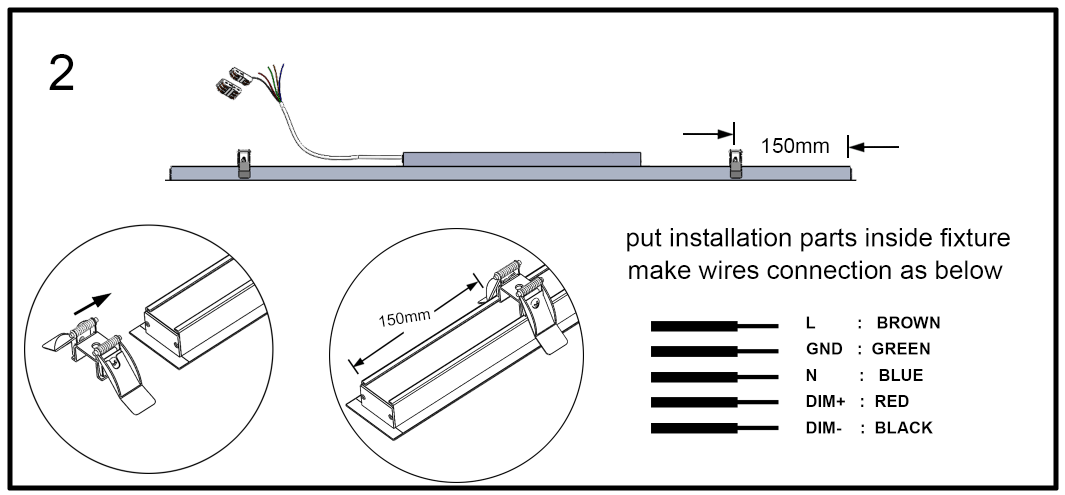

15. Installation Manu:

16. Product family:
