LW-CL70

Advantages

· Energy Saving LED Lights
· Hongli, Samsung, Osram, Philips LED Chips
· Philips, MeanWell, LIFUD, Tridonik, Boke Drivers
· CRI: Ra>80/90/95
· Long Lifespan >100,000 hours
· CE, RoHS, TUV, ENEC, BC Approval
· Vast Range of Stock
· Customized
· Extensive Application
· 5 Years Warranty
· Professional Engineer Support

Classification:

10. LED Circular Lighting

PRODUCTS

Keywords:

LW-CL70


>> Messages

Detail

1. Specifications

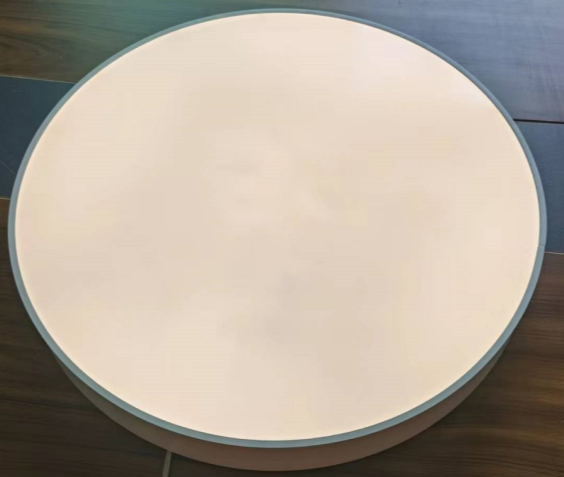

1. LED Circular Lighting
2. Input Voltage: AC100-240V/AC220V-240V
3. Power Consumption: 24W, 36W, 48W, 60W, 72W
4. LED Chips Brand: Hongli, Samsung, Osram, Philips
5. Size: W50XH70mm
6. View Angle: 120°
7. CRI: Ra>80/90/95.
8. Color Temperature: 3000K, 4100K, 6000K
9. Lifespan: 100,000 hours
10. Material: Aluminum + PC Cover
11. Cover: Frosted cover
12. Warranty: 5 years.
13. Certificates: CE, ROHS approval.
14. IP Grade: IP20, indoor use only.
15. It can be linkable and customized.
16. Application: hotel, office, new building, super market, subway station, train station, bus station, garage, townhall, museum, airport, underground parking, commercial shops, etc.

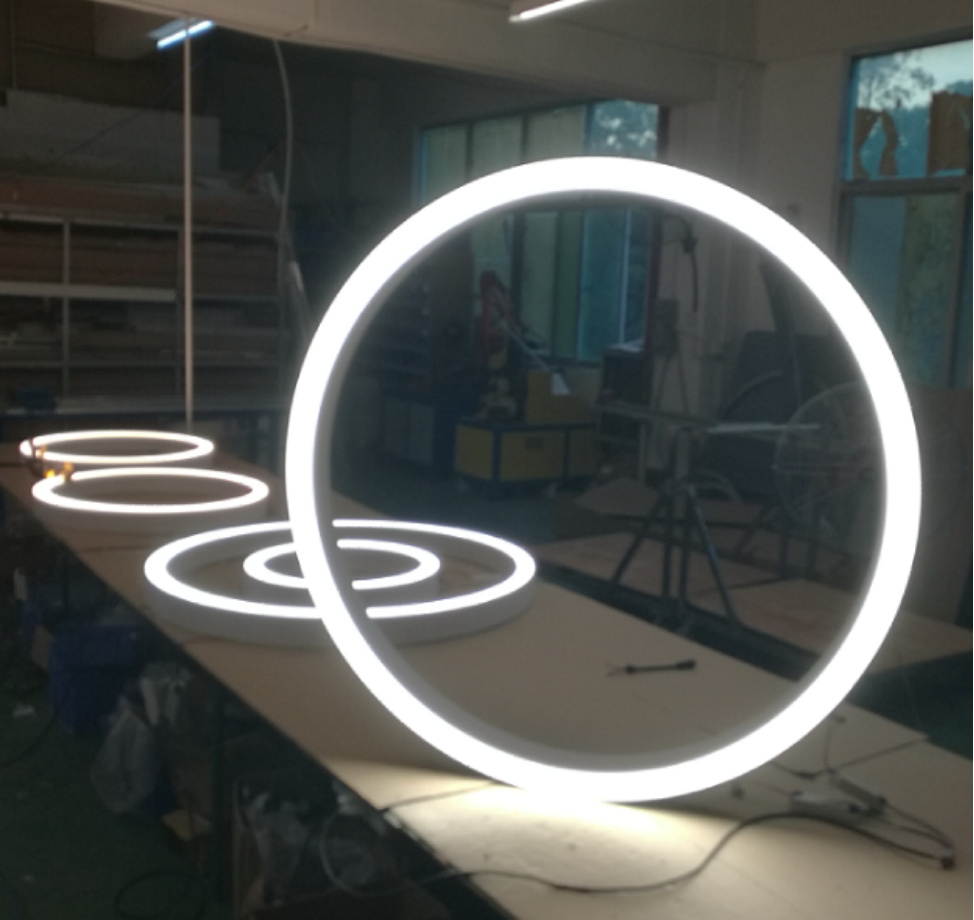

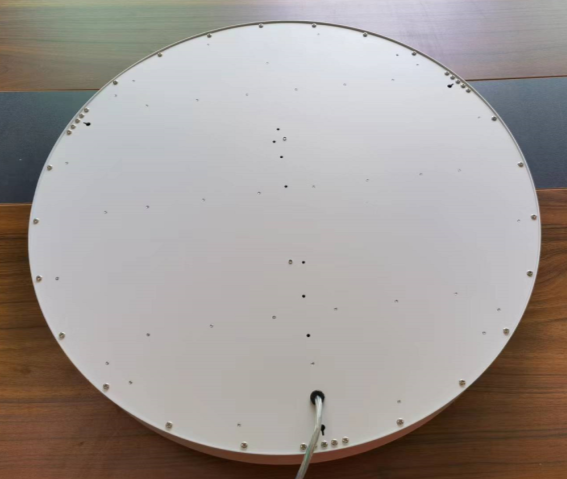

2. Product Details:

3. SPECIFICATIONS:

Product Range:  LED Linear Product, Recessed with Trim
MODEL LW-CL600 LW-CL900 LW-CL1200   Customized
Power Indirect (up):  0 0 0   Available
Power Direct (down):  48W 120W 180W
Luminous Efficiency:  100lm/W
Input Voltage :  AC220-240V,  AC100-240V,  50/60Hz
Power Factor:  >0.95
Working Lifetime(Hour):    50,000 hours
IP Rating:    IP20, Indoor Use Only
Body Material:    Aluminum and PC Cover
Diffuser:  PC Cover /Prizmatic

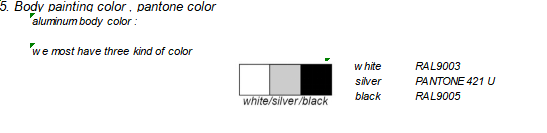

Body Color:  White, Black, Silver/Grey, etc.
Beam Angle:  120 °
Linkable:  Yes, Connectable

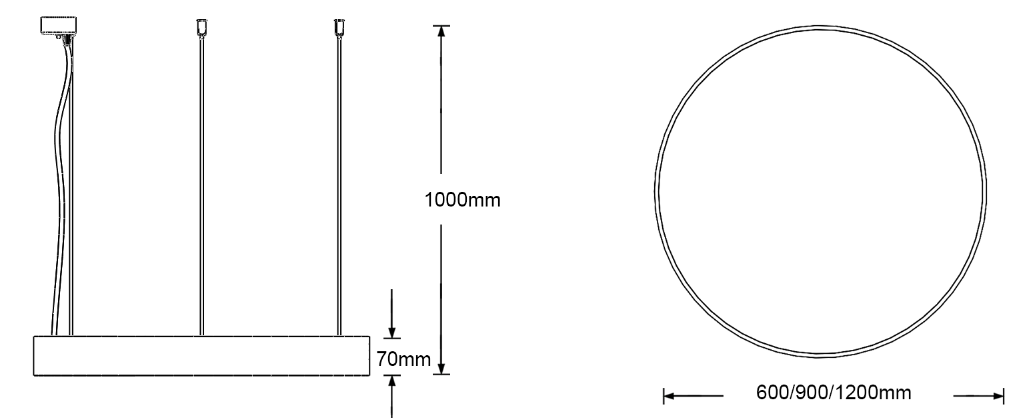

Product Dimension:  See Picture Drawing
Installation:  Recessed with Trim
LED  Light Source:  LED
LED Style:  2835 LED,  0.2W 26-28lm, Gold Wires
LED Brand:  Hongli/Osram/Philips/Samsung
LM-80 Test Report:  Yes, if needed
Color Rendering:  Ra>80,  or Ra>90
Color Temperature:  2700-6500K
Driver  Driver Brand:  LIFUD/    PHILIPS/   TRIDONIC/    OSRAM/   BOKE
Driver Position:  Inside Fixture
Dimmable:  Static Color, 0-10V, DALI
Product Style:  LED Office Lighting
Working Temperature():    -40 °-85 °
Storage Temperature:    -40 °-85 °
Certification:    CE, Rohs
Warranty:    5 Years
Application:    Office, raiway, shop, advertising, industrial place, gas station, etc.

4. Driver

Length 1000mm 1200mm 1500mm 1800mm 2000mm 2400mm Length can be Customized
Power   30W 36W 48W 54W 60W 72W
Lumen Efficiency 100lm/W 100lm/W 100lm/W 100lm/W 100lm/W 100lm/W
Total Lumen  3000lm 3600lm 4800lm 5400lm 6000lm 7200lm
Lifud Driver  30W/750mA  36W/950mA 48W/1200mA 54W/1350mA 60W/1500mA 72W/1900mA
Philips Driver  41W/550mA 41W/700mA 54W/900mA 54W/1000mA 72W/1200mA 72W/1300mA
Tridonic Driver  LC27/500 LC/38/700 LC57/1050   LC57/1050 LC75/1400
Meanwell Driver  LDC-35 LDC-35 LDC-55 LDC-55 LDC-80 LDC-80

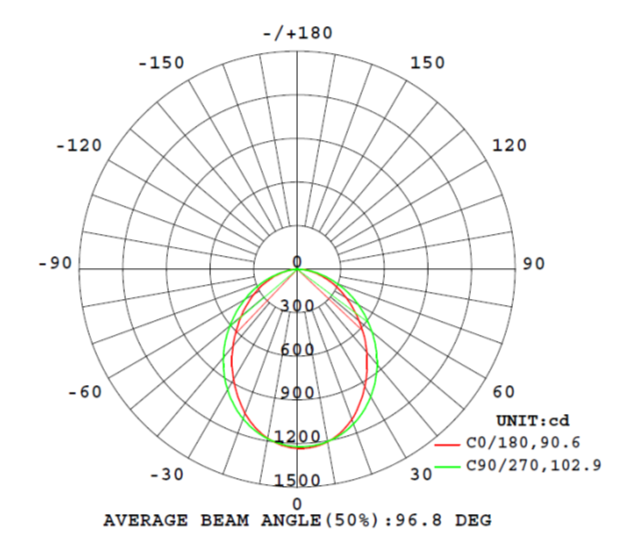

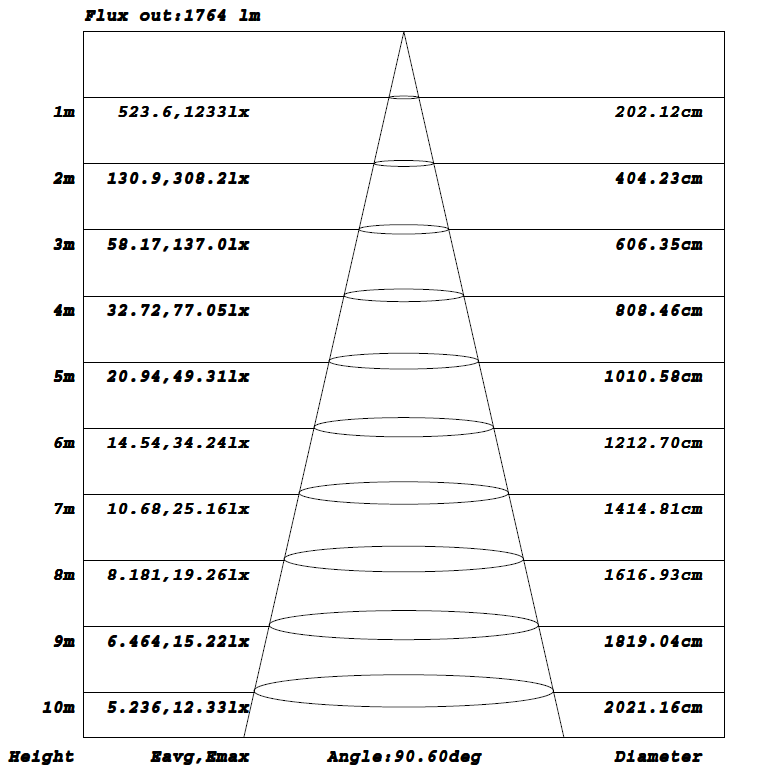

7. IES Test Report:

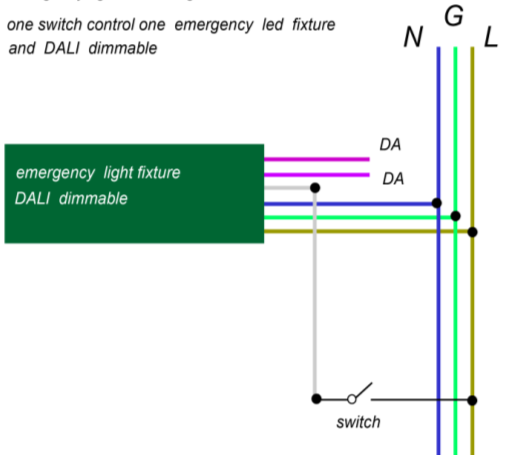

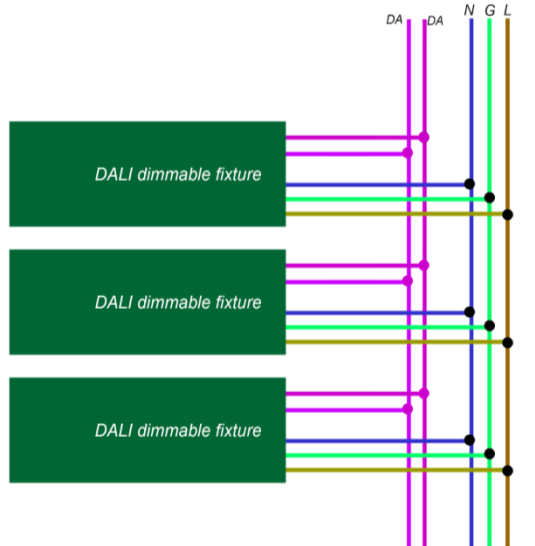

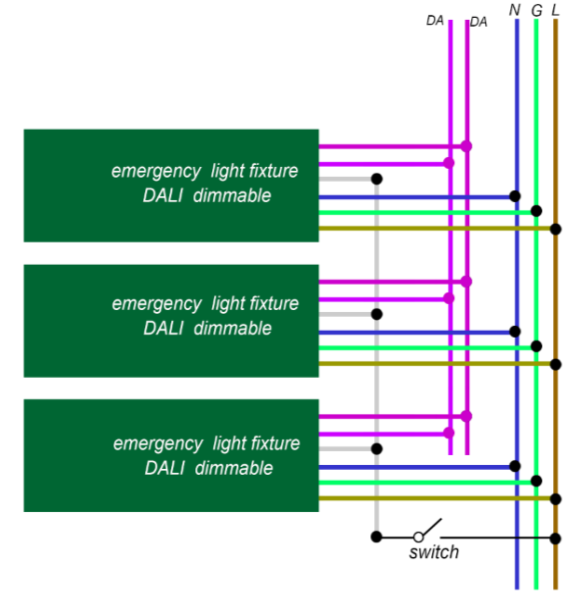

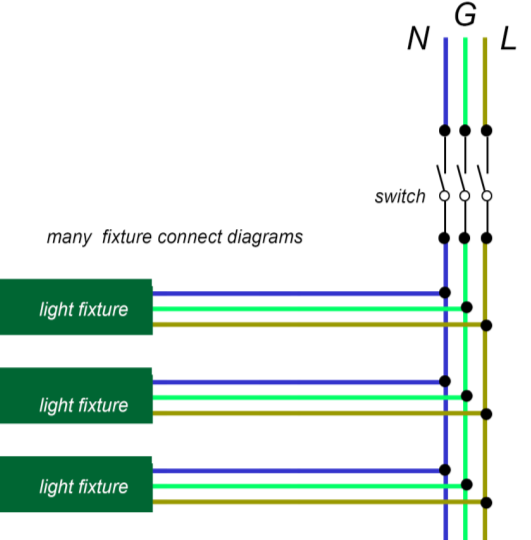

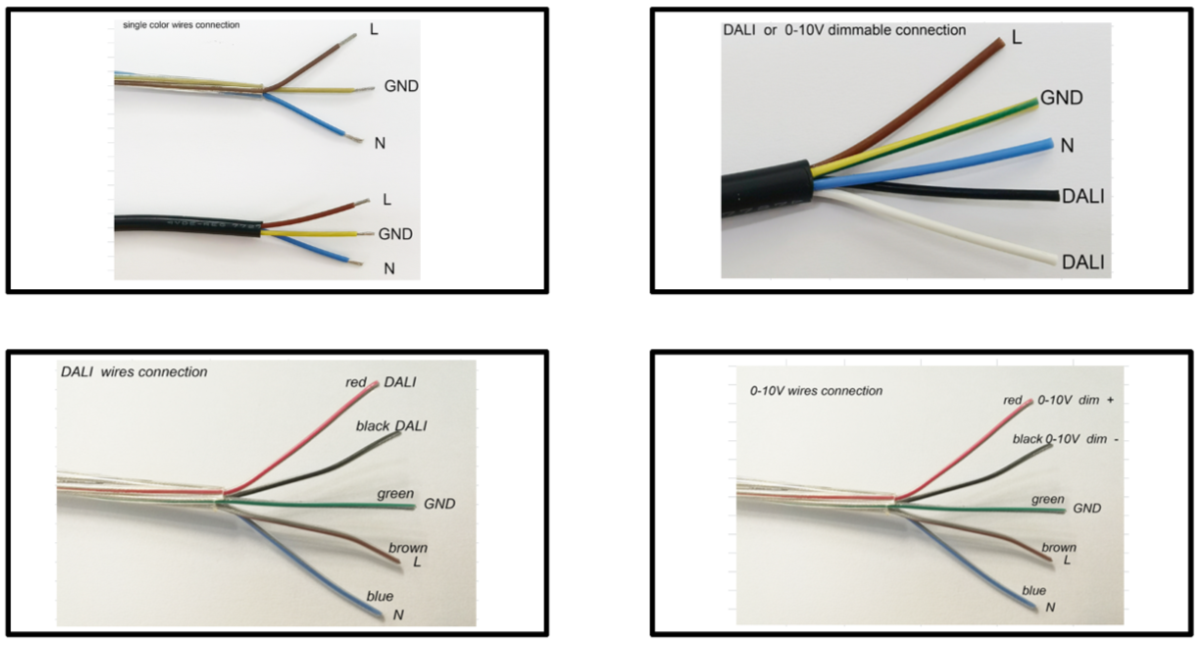

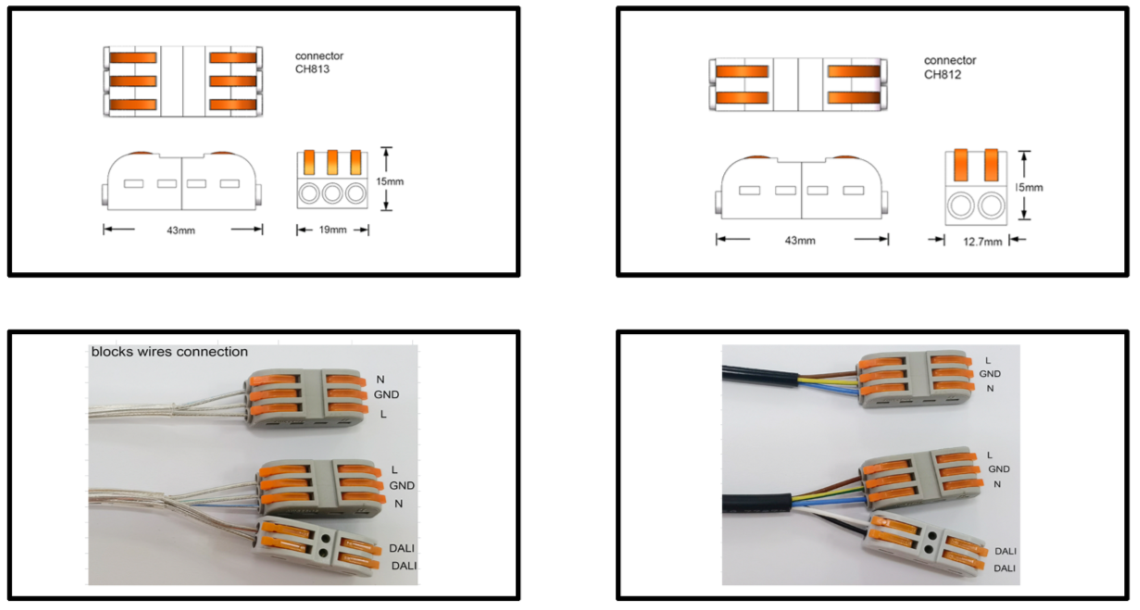

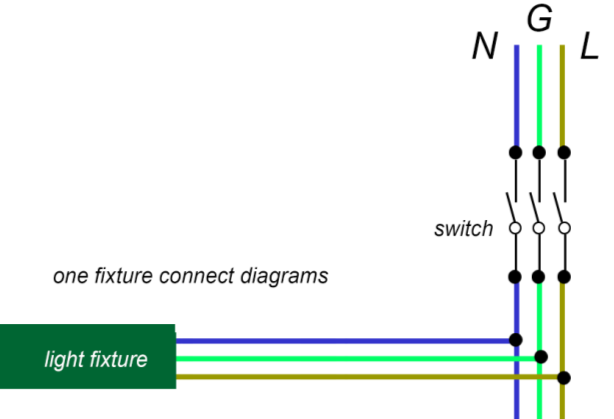

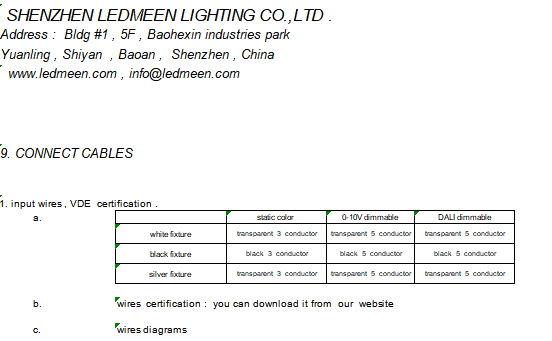

10. Wires Diagrams:



11. Package Information

PACKAGE Information
Product Length Carton Size(cm) Unit in Cartons  Carton N.W (kg) Carton G.W (kg)
L W H
600mm 62 62 30 3pcs/cartons  10 12
900mm 92 92 30 3pcs/cartons  25 27
1200mm 122 122 20 2pcs/cartons  26 28

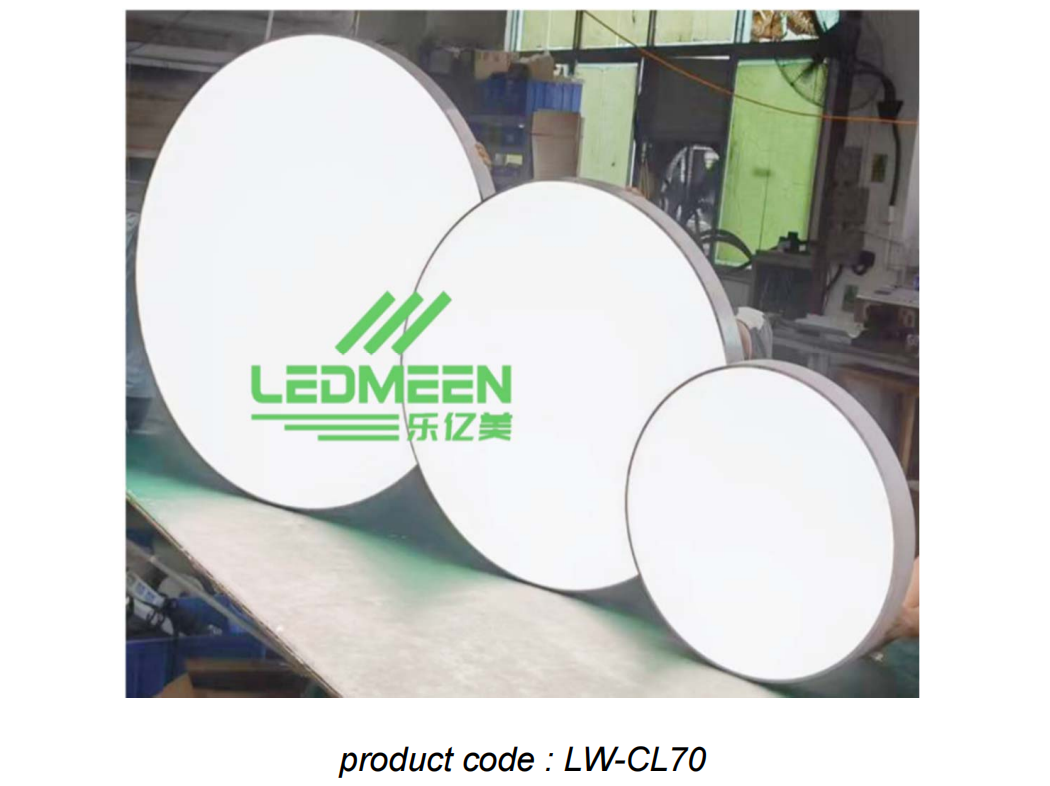

12. Product Family

Diameter: 600mm, 900mm, 1200mm

Company Profile:

SHENZHEN LEDWELL LIGHTING CO.,LIMITED is a professional led lighting manufacturer established in 2007, located in Shenzhen China. More than 50 employees and 6 engineers. We not only make led lighting but also offer solutions. Our service includes design, offering solutions and installation ways. We keep improving, to find a better way to make our products meet customers' full requirements.

LEDWELL specializes in LED lighting such as Led Tube Lights, Led Panel Lights, Led Downlights, Led Hard Strips, Led Ceiling Lamps, etc. All our products are for energe saving and most of them have gotten CE, ROHS approved.
More certificates are on the way.

We expect to establish long terms business relationship with global customers, with both good quality and competitive prices.

Welcome customers to inquiry with your detail requirements. Customized available.



FAQ:

1. Price Terms

Price can be EXW, FOB, CIF, DAP, DDP.

2. Delivery time?

Large stock for regular colors and sizes, can be shipped within 2 days. Customized colors and sizes depends on quantity. 50K units is available for most of our models in normal colors and sizes.

3. Payment Terms?

The payment can be T/T, L/C, Western Union.

4. Shipment Options?

Small quantities can be shipped by air, or DHL, UPS, FEDEX express. Large quantities we suggest shipping by sea to save cost. You can choose your own forwarder agent.

5. Sample available?

Yes. We can send samples first, samples and shipping cost  need be charged if the value is high. It can be negotiated.

6. Will there be any contract for this business or trade?

Yes, there is a normal contract/Proforma Invoice before the order is placed.
